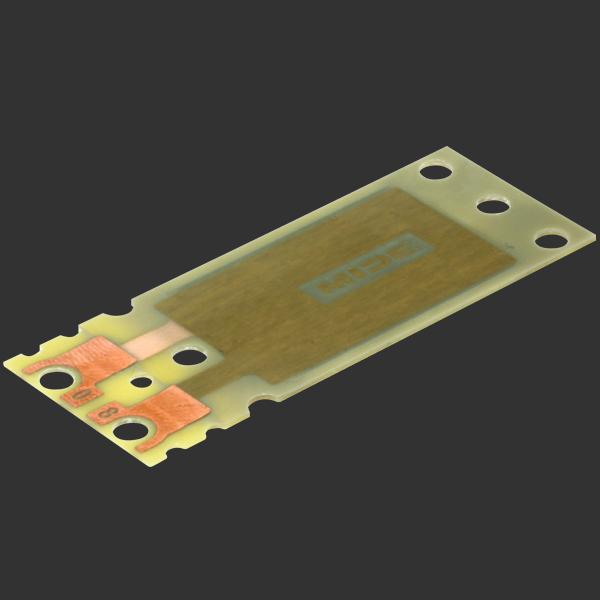

Piezoelectric Bending Transducer (S128-H5FR-1107YB)
S128-H5FR-1107YB
Piezoelectric Bending Transducer
$117.00
117.00
In stock
2.09 x 0.82 x 0.028 in. PZT 5H, 1-Layer Bender with Sealed Mounting
ROHS:Piezo exempt.Product compliant.
Lead Time: Up to 15 Business Days, + Shipping - Shipping & Ordering
This mono-morph (single layer) piezoelectric actuator and sensor produces curvature when the piezo layer expands or contracts against the static passive layer of FR4 (garolite). These transducers are often referred to as benders, bimorphs, or flexural elements. Bender motion on the order of hundreds to thousands of microns, and bender force from tens to hundreds of grams, is typical.
This transducer is one of our most cost effective packaged piezoelectric elements and further improves its economic value with integrated copper pads for electrical connection and mounting holes for assembly.
This transducer is one of our most cost effective packaged piezoelectric elements and further improves its economic value with integrated copper pads for electrical connection and mounting holes for assembly.
Quantity Pricing
| Quantity | 1 | 5 | 25 | 100 |
| Price (ea) | $117.00 | $70.20 | $46.80 | $35.10 |
Dimensions
Layer Specifications
| Layer Material | Thickness mils / mm |
| FR4 | 3.0 / 0.08 |
| Copper | 1.4 / 0.03 |
| PZT 5H | 7.5 / 0.19 |
| Copper | 1.4 / 0.03 |
| FR4 | 14.0 / 0.36 |
General Specifications
| Parameters | Specifications |
| Length (mm.) | 55.4 |
| Width (mm.) | 23.4 |
| Thickness (mm.) | 0.71 |
| Temperature Range | -60° C to 120° C |
| Mass (grams) | 2 |
| Capacitance (nF) | 40 |
| Rated Drive Voltage (+/-V) | 150 |
| Free Deflect (+/-mm) | 0.19 |
| Blocked Force (N) | 0.09 |
| Spring const (N/mm) | 0.474 |
| Max Amplitude (mm) | 10 |
| Response Time (mSec) | 3 |
| Resonant Freq (Hz) | 384 |
| Max Drive Volts @ Resonance (V) | 20 |
Harvester / Generator Specifications
| Parameter | No tip mass (unloaded) | W/ tip mass (loaded) |
| EH Resonant Freq (Hz) | 384 | 85 |
| Open Circuit Output (+/- Volts/G) | 5 | 35 |
| Resistor Load (Ohm) | 18000 | 300 |
| Power @ Rated G (mW) | 26 | 19.6 |
| G rating (+/- G's) | 8 | 1.6 |
