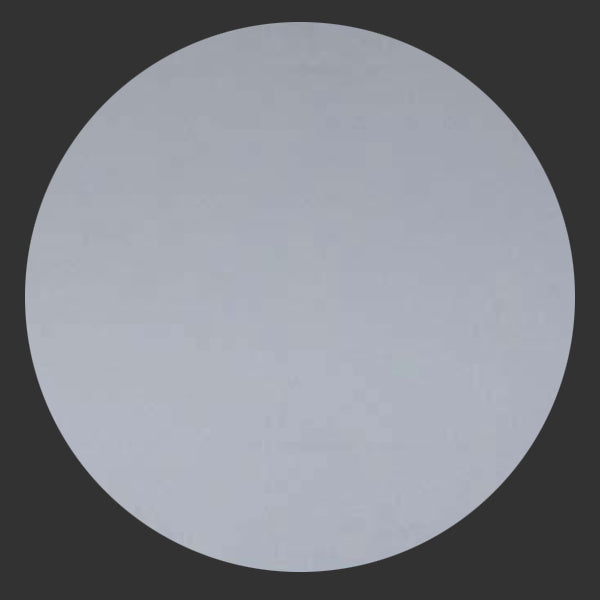

Piezoelectric Bending Disc (T216-A4NO-05)
T216-A4NO-05
Piezoelectric Bending Disc
$292.82
292.82
In stock
Buy More to Save More: » Quantity Pricing
0.50" DIA, 0.016" Thick PZT 5A Piezoelectric Bending Disc
Lead Time: Up to 15 Business Days, + Shipping - Shipping & Ordering
ROHS:Piezo exempt.Product compliant.
A 2-layer piezoelectric actuator produces curvature when one piezo layer expands while the other layer contracts. These transducers are often referred to as benders, bimorphs, or flexural elements. Bender motion on the order of hundreds to thousands of microns, and bender force from tens to hundreds of grams, is typical.
The bending disks bow in and out like a drum head. Because they have no center shim reinforcement, they are not intended to be center accessed, instead operated solely in parallel.
The bending disks bow in and out like a drum head. Because they have no center shim reinforcement, they are not intended to be center accessed, instead operated solely in parallel.
Piezo Material Properties: More information on our Piezo Material Properties »
Please Note: It is Piezo.com’s policy to only send out fully functioning, inspected products… read more »
Quantity Pricing
| Quantity | 1 | 5 | 25 | 100 |
| Price (ea) | $292.82 | $146.41 | $87.85 | $58.56 |
Dimensions
General Specifications
| Parameters | Specifications |
| Length (mm.) | 12.7 |
| Thickness (mm.) | 0.41 |
| Temperature Range | -60° C to 140° C |
| Mass (grams) | 0.4 |
| Capacitance (nF) | 4 |
| Rated Drive Voltage (+/-V) off of Resonance | 180 |
| Free Deflect (+/-mm) | 0.019 |
| Blocked Force (N) | 2.4 |
| Resonant Freq (Hz) | 7300 |
