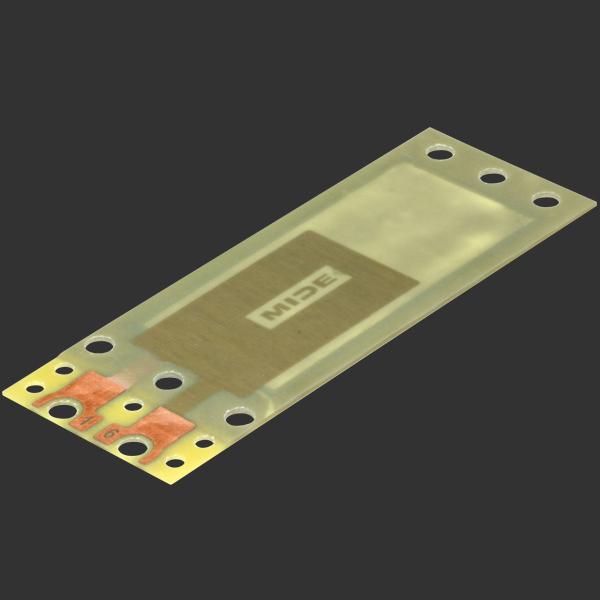

Piezoelectric Bending Transducer (S452-J1FR-1808XB)
S452-J1FR-1808XB
Piezoelectric Bending Transducer
$832.48
832.48
In stock
Buy More to Save More: » Quantity Pricing
2.80 x 1.00 x 0.052 in. PZT 5J, 4-Layer Bender with Sealed Mounting
Lead Time: Up to 15 Business Days, + Shipping - Shipping & Ordering
ROHS:Piezo exempt.Product compliant.
A 2-layer piezoelectric actuator produces curvature when one piezo layer expands while the other layer contracts. These transducers are often referred to as benders, bimorphs, or flexural elements. Bender motion on the order of hundreds to thousands of microns, and bender force from tens to hundreds of grams, is typical.
The brass shim reinforcement laminated between the two piezoelectric layers is an economical approach to producing a rugged actuator.
Piezo Material Properties: More information on our Piezo Material Properties »
Please Note: It is Piezo.com’s policy to only send out fully functioning, inspected products… read more »
Quantity Pricing
| Quantity | 1 | 5 | 25 | 100 |
| Price (ea) | $832.48 | $499.49 | $332.99 | $249.74 |
Dimensions
Layer Specifications
| Layer Material | Thickness mils / mm |
| FR4 | 3.0 / 0.08 |
| Copper | 1.4 / 0.03 |
| PZT 5J | 6.0 / 0.15 |
| Copper | 1.4 / 0.03 |
| FR4 | 3.0 / 0.08 |
| Copper | 1.4 / 0.03 |
| PZT 5J | 6.0 / 0.15 |
| Copper | 1.4 / 0.03 |
| FR4 | 3.0 / 0.08 |
| Copper | 1.4 / 0.03 |
| PZT 5J | 6.0 / 0.15 |
| Copper | 1.4 / 0.03 |
| FR4 | 3.0 / 0.08 |
| Copper | 1.4 / 0.03 |
| PZT 5J | 6.0 / 0.15 |
| Copper | 1.4 / 0.03 |
| FR4 | 3.0 / 0.08 |
General Specifications
| Parameters | Specifications |
| Length (mm.) | 71.1 |
| Width (mm.) | 25.4 |
| Thickness (mm.) | 1.32 |
| Temperature Range | -60° C to 120° C |
| Mass (grams) | 7.6 |
| Capacitance (nF) | 415 |
| Rated Drive Voltage (+/-V) off of Resonance | 120 |
| Free Deflect (+/-mm) | 0.35 |
| Blocked Force (N) | 0.82 |
| Spring const (N/mm) | 2.368 |
| Resonant Freq (Hz) | 246 |
| Max Drive Volts @ Resonance (V) | 10.0 |
Harvester / Generator Specifications
| Parameter | No tip mass (unloaded) |
| EH Resonant Freq (Hz) | 246 |
| Open Circuit Output (+/- Volts/G) | 3 |
| Resistor Load (Ohm) | 1100 |
| Power @ Rated G (mW) | 1.4 |
| G rating (+/- G's) | 8 |
